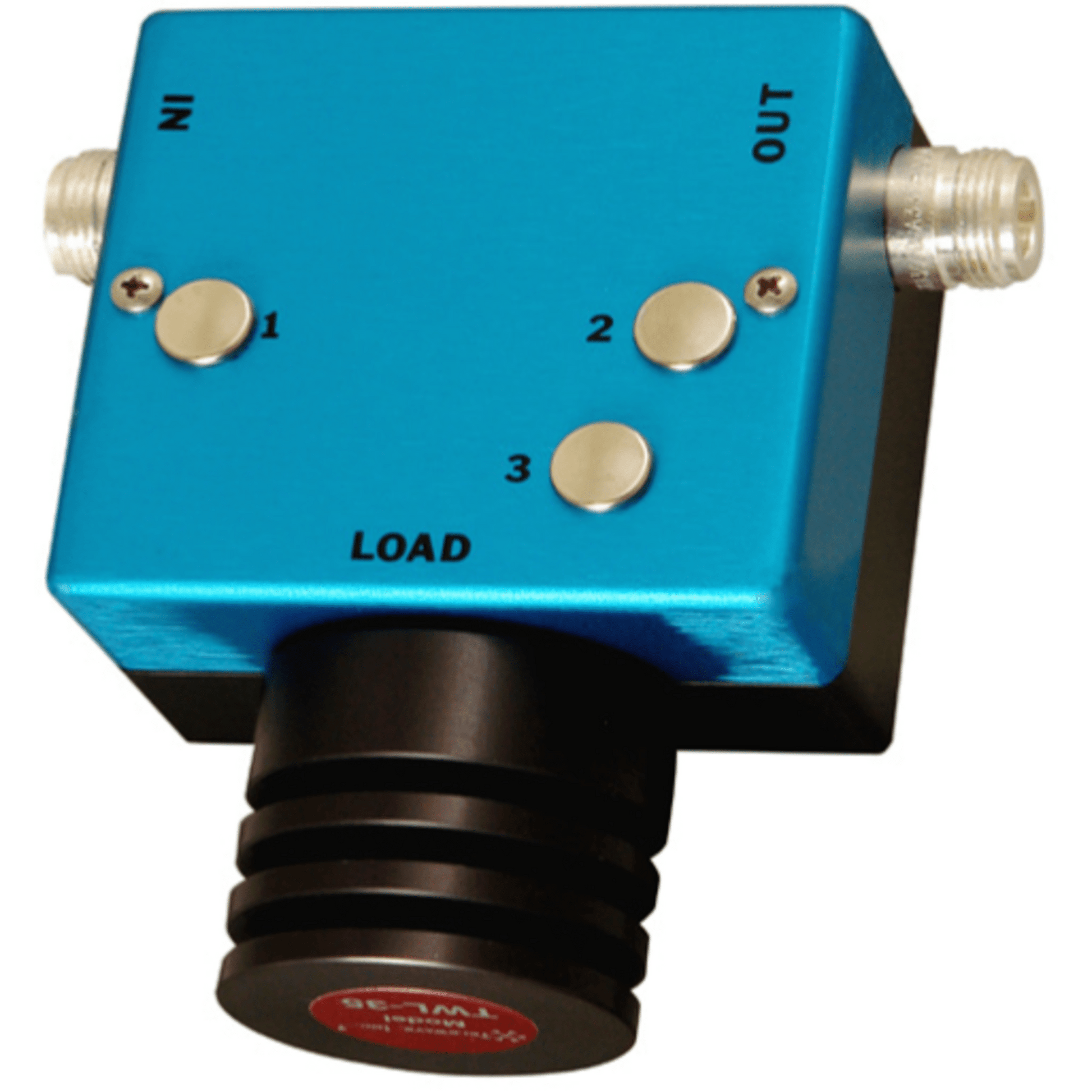

Aislador individual 118-174 MHz, 50 Ohm, 100 W, N Hembra

Aislador individual 118-174 MHz, 50 Ohm, 100 W, N Hembra

Frequency band 118-174 MHz

Tuning range (typ.) ± 4 MHz

Input power 100 watts

VSWR (typ.) 1.25:1

Impedance 50 ohms

Connectors N Female

Temperature range -30°C to +60°C

Isolator type Single

Isolation (typ. / min) 35 dB / 30 dB

Insertion loss (typ.) 0.4 dB

Dimensions (incl. loads) in. 4.5 x 4 x 2 / cm 11.5 x 10 x 5

Weight lb. (kg) 3 (1.4)
